30kVA 11kV European Type Prefabricated Substation
|Terms of Trade:||FOB,CFR,CIF|
|Min. Order:||1 Set/Sets|
|Delivery Time:||45-60 Days|
|Productivity:||500 Sets / year|
|Brand:||QRE - QIANCHAO|
|Place of Origin:||China|
|Port:||China Sea Port|
Model No.: Prefabricated Substation
Part I: Product Overview
The 11kV prefabricated substation is a set of high-voltage switchgear, distribution transformers and low voltage power distribution equipment, according to a certain wiring diagram to be connected in one of the factory indoor, outdoor compact type distribution equipment, the step-down transformer, low voltage power distribution, and other functions organically combined together, installed in a moisture-proof, rust-proof, dustproof, ratroot, fire prevention, guard against theft, thermal insulation, fully enclosed, movable steel structure, especially suitable for city network construction and retrofit, is the civil substation after the rise of a new substation.
Part II: Product Features
1. Compact structure, small size, safe and reliable operation, easy for maintenance and removable.
2. It is suitable for the lighting and power system of streets, highways, bridges, tunnels, parking lots, residential areas and tourist attractions, especially for urban grid transformation.
3. Power supply safety and reliability: can provide perfect mechanical or electrical linkage, meet the requirement of [five defense", and ensure the safety of the person.
4. Enclosure material is various, design beautiful, under the premise that guarantee the power supply reliability, by selecting the box-type substation shell color, the harmony with the surrounding environment, especially suitable for urban construction.
5. The transformer is mainly ventilated with natural ventilation, and when the temperature of the transformer room exceeds the set temperature, the axial fan on the top automatically starts to control the temperature of the transformer room.
6. The pre-installed transformer substation can be customized according to the user's requirement, so the selection scope is large and the market ability is strong.
7. High degree of automation, protection system using microcomputer integrated substation automation devices, which can realize "four control", namely, telemetry, remote communication, remote control, remote regulating. Each unit has independent operation function and complete relay protection function. The operation parameters can be set from remote distance to control the humidity and temperature of the enclosure and the smoke alarm meeting the requirements of the unattended. Image remote monitoring can be implemented as needed.
Part III: Main Parameter
Type Transformer Model Voltage Capacity (kV.A) No Load Loss (kW) Load Loss (kW) No-load Current (%) Short-circuit Impedance (%) Dimensions LxWxH (mm) H.V (kV) L.V (kV) ZYB-11/0.4-30 S11-M-30/11 11 0.4 30 0.100 0.630 1.5 4.0 2900x2400x 2800 S13-M-30/11 0.080 0.630 1.5 4.0 S14-M-30/11 0.080 0.505 1.5 4.0 SH15-M-30/11 0.033 0.630 1.5 4.0 SC10-30/11 0.190 0.710 2.0 4.0 SC11-30/11 0.170 0.710 2.0 4.0 SC12-30/11 0.150 0.710 2.0 4.0 SC13-30/11 0.135 0.640 2.0 4.0
No-load Current (%)
Short-circuit Impedance (%)

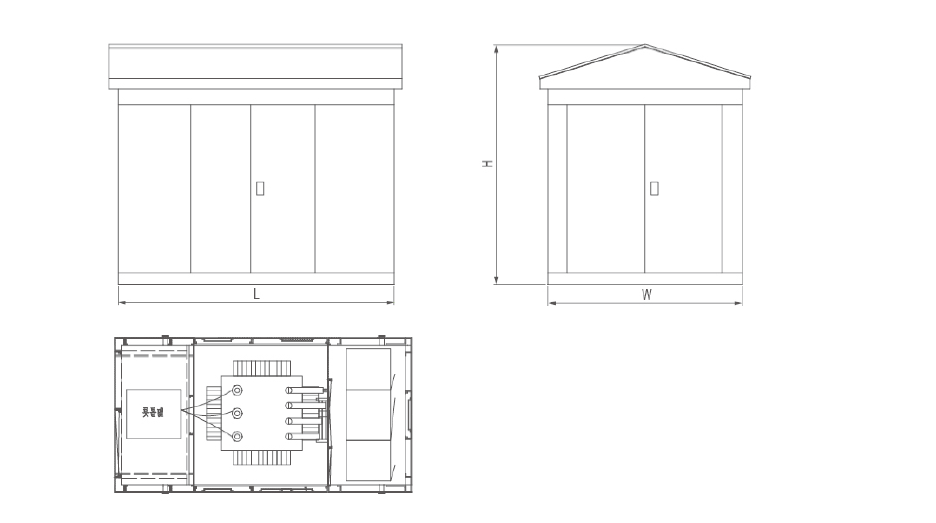

Part IV: Outline Drawing
Hangzhou Qiantang River Electric Group Co., Ltd.(QRE)
Hangzhou Qiantang River Electric Group Co., Ltd (Abbr.: QRE) is one of the leading manufacturer of power transformer & distribution transformer in China. With more than 43 years experience in this field, QRE constantly focus on transformer.
It's main products include: oil immersed transformer with capacity up to 250MVA/400 kV, Cast resin transformers, compact substation and components. This enterprise accomplished turnover about USD350 million in 2018.
Depends on it's high quality, short delivery time and competitive price, QRE becomes one of the famous brand over world. during past years, more than 500 oversea projects were completed in 62 different countries. Such as Germany, Italy, Iceland, Nigeria, India.
- Company Name: Hangzhou Qiantang River Electric Group Co., Ltd.(QRE)
- Representative: Xiang zhongxiao
- Product/Service: Power Transformer , Cast Resin Transformer , Dry type Transformer , Compact substation , transformer upgrade , transformer mornitoring
- Capital (Million US $): 1080000000RMB
- Year Established: 1976
- Total Annual Sales Volume (Million US $): Above US$100 Million
- Export Percentage: 1% - 10%
- Total Annual Purchase Volume (Million US $): US$10 Million - US$50 Million
- No. of Production Lines: >20
- No. of R&D Staff: Above 100 People
- No. of QC Staff: Above 100 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): Above 100,000 square meters
- Factory Location: Qiantang River Electric Science & Technology Industrial Zone,Xiaoshan District,Hangzhou city-311243,P.R.China.
- Contact Person: Mr. James
- Tel: 86-0571-82583721
