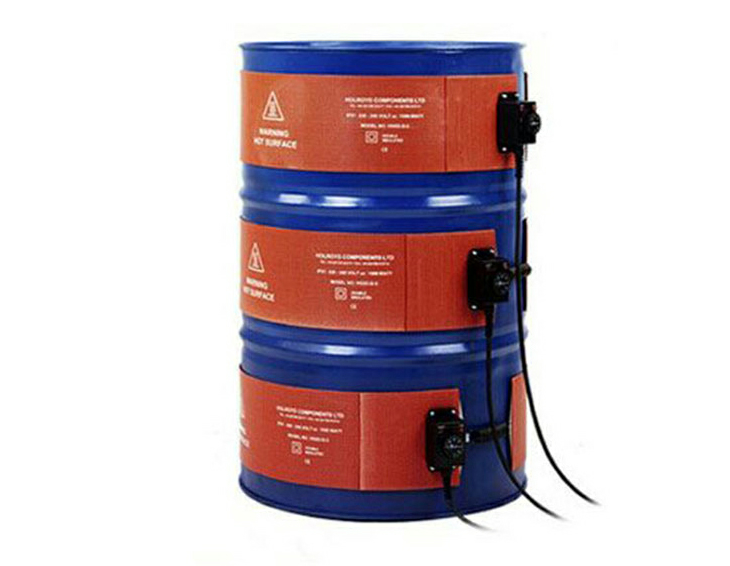

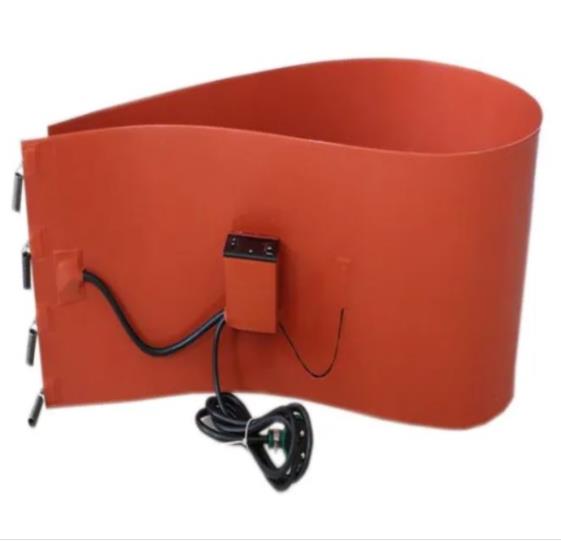

Silicon Rubber Heater for Drum with Temperature Controller

Flexible Silicone Heaters are rugged, yet thin, lightweight and flexible. Heat can be put where it is needed. These electric industrial heating blankets improve heat transfer, speed warm ups, and decrease wattage requirements.

Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little material separates the element from the part, heat transfer is rapid and efficient. The silicone rubber flexible heaters are constructed with a wire-wound element and the heater construction creates a very thin heater allowing it to fit applications where space is limited.

Silicone rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment.

Technical Data:

Voltage	12V to 480V , 1 or 3 phase	Wattage Denisty	0.9-1W/cm2
Thickness	1.5 mm standard or customize	Insulation Ohm	More than 50MΩ
Max. Operating Temp	260 Deg C or 500 Deg F	Min. Element Temp	-50 Deg C or -58 Deg F
Min Size	10*10 mm	Maxi Size	2000*10000mm
Drum Material	Stainless Steel	Plastic	Glass
Temperature Controller	Dial thermostat	Digital Thermostat	Anti-explosion
Power Plug	British	American	European
Fixation	Spring hook	Magic Sticks	Marine Turns etc

Advantages of electric rubber heating pad

1. Large heating area

2. Heating evenly

3. Heating up quickly

4. Small thermal inertia

5. Precise Temperature Control

Main applications of electric rubber heating pad

1. Thermal transfer equipment or 3D printer

2. Prevent condensation in motors or instrument cabinets

3. Freeze or condensation prevention in housings containing electronic equipment, for examples: traffic signal boxes, automatic teller machines, temperature control panels, gas or liquid control valve housings

4. Composite bonding processes

5. Airplane engine heaters and aerospace industry

6. Drums and other vessels and viscosity control and asphalt storage

7. Medical equipment such as blood analyzers, medical respirators, test tube heaters, etc.

8. Curing of plastic laminates

9. Computer peripherals such as laser printers, duplicating machines

10. Medical equipment
